The Honda Civic uses a modern braking system designed to provide controlled deceleration, stability, and integration with electronic safety technologies. The system combines hydraulic braking components with electronic control systems to manage braking force under a wide range of driving conditions.

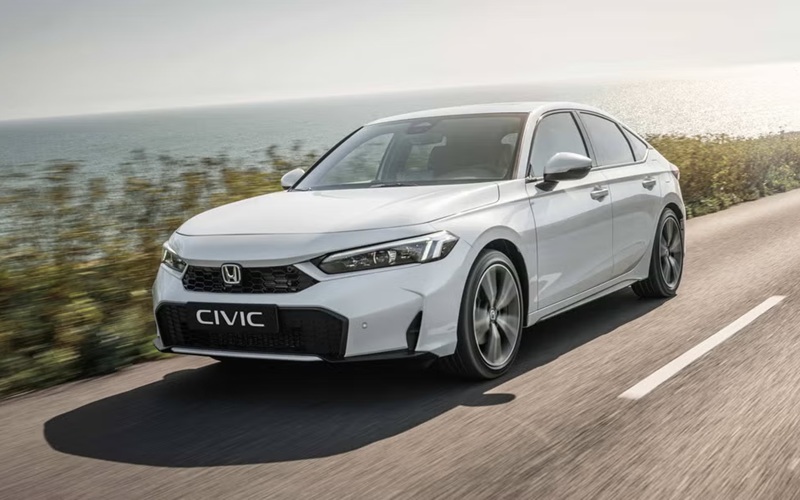

2026 White Honda Civic
Short Answer
The Honda Civic uses a four-wheel disc brake system with ventilated front discs and solid rear discs, supported by an electronically controlled hydraulic braking system. It includes anti-lock braking (ABS), electronic brake-force distribution (EBD), and brake assist. These systems work together to optimize stopping performance, stability, and control.
Detailed Technical Explanation
Brake System Architecture Overview
The braking system in the Civic uses a hydraulic disc brake configuration on all four wheels. Hydraulic pressure generated by the driver’s input at the brake pedal is transmitted through brake fluid to callipers, which apply friction to rotating discs (rotors) attached to each wheel.
The system uses control modules that monitor wheel speed, vehicle dynamics, and driver input to regulate braking force in real time.
Front Brake System
Ventilated Disc Brakes
The front axle uses ventilated disc brakes, which consist of two parallel friction surfaces separated by internal vanes. These vanes allow air to flow through the disc, improving heat dissipation.
Key characteristics:
- Larger diameter compared to rear discs
- Internal ventilation channels for cooling
- Increased thermal capacity for repeated braking
Brake Calipers
Each front wheel uses a floating calliper design. The calliper houses one or more pistons that press brake pads against both sides of the disc when hydraulic pressure is applied.
The floating design allows the calliper to move laterally, ensuring even pressure distribution across both brake pads.
Rear Brake System
Solid Disc Brakes
The rear axle has solid (non-ventilated) disc brakes. These discs are typically smaller and handle less braking load than the front discs.
Despite their simpler design, rear discs contribute to overall braking balance and stability.
Integrated Parking Brake Mechanism
The rear brake system incorporates an electronic parking brake. This system uses electric actuators to apply clamping force to the rear discs when engaged.
The parking brake system is controlled via a switch and can automatically engage under certain conditions.
Hydraulic System Components
Brake Master Cylinder
The master cylinder converts mechanical force from the brake pedal into hydraulic pressure. It typically uses a dual-circuit design, meaning two independent hydraulic circuits operate simultaneously for redundancy.
If one circuit fails, the other can still provide partial braking capability.
Brake Fluid
Brake fluid transmits pressure through the system. It must maintain consistent viscosity and resist boiling under high temperatures.
The system prevents moisture contamination, which could reduce performance.
Brake Lines and Hoses
Rigid metal lines and flexible hoses carry brake fluid from the master cylinder to each wheel. Flexible hoses accommodate suspension movement while maintaining pressure integrity.
Electronic Brake Control Systems
Anti-Lock Braking System (ABS)
Functionality
ABS prevents wheel lock-up during heavy braking. Wheel speed sensors detect rotational speed at each wheel. If a wheel is about to lock:
- Hydraulic pressure to that wheel is reduced
- Pressure is reapplied in rapid cycles
- The process repeats multiple times per second
This allows the driver to maintain steering control while braking.
Components
- Wheel speed sensors
- Hydraulic modulator
- Electronic control unit (ECU)
Electronic Brake-Force Distribution (EBD)
Load-Based Force Adjustment
EBD adjusts braking force between the front and rear wheels based on vehicle load and weight distribution.
For example:
- Increased rear load → more braking force to rear wheels
- Light rear load → reduced rear braking to prevent instability
This improves braking efficiency and reduces stopping distance.
Brake Assist System
Emergency Braking Support
Brake assist detects rapid pedal application, which indicates an emergency braking situation. If the driver does not apply sufficient force:
- The system increases hydraulic pressure automatically
- Maximum braking force is applied more quickly
This reduces reaction time and stopping distance.
Vehicle Stability Integration
Electronic Stability Control (ESC)
The brake system integrates with the vehicle’s stability control system. ESC monitors:
- Yaw rate
- Steering angle
- Lateral acceleration
If the vehicle begins to lose stability, the system selectively applies braking to individual wheels to correct the trajectory.
Traction Control System (TCS)
During acceleration, TCS may apply braking to individual wheels that lose traction. This helps maintain grip and directional stability.
The braking system enables precise torque management through selective wheel braking.
Brake Pedal and Actuation
Pedal Ratio and Feel
The brake pedal is mechanically linked to the master cylinder. Pedal ratio determines how the input force is amplified.
The system provides:
- Progressive resistance
- Predictable feedback
- Controlled modulation
Brake Booster
A vacuum-assisted brake booster reduces the effort required by the driver. It uses the pressure differential between atmospheric pressure and engine vacuum to amplify pedal force.
In some configurations, an electric booster may be used, especially in vehicles with start-stop systems.
Thermal Management
Heat Generation and Dissipation
Braking converts kinetic energy into heat through friction. The system manages this heat to prevent:
- Brake fade (reduced friction at high temperatures)
- Fluid boiling
- Component wear
Ventilated front discs and airflow around the braking components help dissipate heat efficiently.
Materials and Friction Components
Brake Pads
Brake pads are made from composite friction materials designed to provide consistent performance across temperature ranges.
Characteristics include:
- Stable friction coefficient
- Resistance to wear
- Low noise generation
Brake Rotors
Rotors are typically made from cast iron or similar alloys, chosen for their durability and heat resistance.
Surface finish and thickness maintain consistent contact with brake pads.
Electronic Parking Brake System
Operation
The electronic parking brake replaces traditional mechanical lever systems. When activated:
- Electric motors apply force to the rear brake callipers
- The system maintains clamping force without driver input
Additional Functions
The system can integrate with other features, such as:
- Automatic hold function during توقف traffic
- Automatic engagement when the vehicle is parked
Mississauga Honda includes this braking configuration as standard equipment on the new Civic, ensuring consistent system integration across all variants.
Redundancy and Safety Engineering
Dual-Circuit Hydraulic Design
The braking system is divided into two circuits, typically diagonal (front-left/rear-right and front-right/rear-left). This ensures that if one circuit fails, the other still provides braking capability.
Fail-Safe Mechanisms
Electronic systems are designed with fallback modes. If a sensor or control unit fails:
- The system reverts to basic hydraulic braking
- Warning indicators inform the driver
2026 Honda Civic FAQ
What type of brakes does the 2026 Honda Civic use?
- It uses a four-wheel disc brake system with ventilated front discs and solid rear discs.
How does ABS improve braking performance?
- ABS prevents wheel lock-up by modulating brake pressure, allowing the driver to maintain steering control during hard braking.
What is the function of electronic brake-force distribution?
- EBD adjusts braking force between front and rear wheels based on load conditions to improve stability and efficiency.
Does the vehicle include an electronic parking brake?
- Yes, the rear brake system includes an electronically controlled parking brake with automatic functions.
How does brake assist work?
- Brake assist detects emergency braking and increases hydraulic pressure to achieve maximum braking force more quickly.
